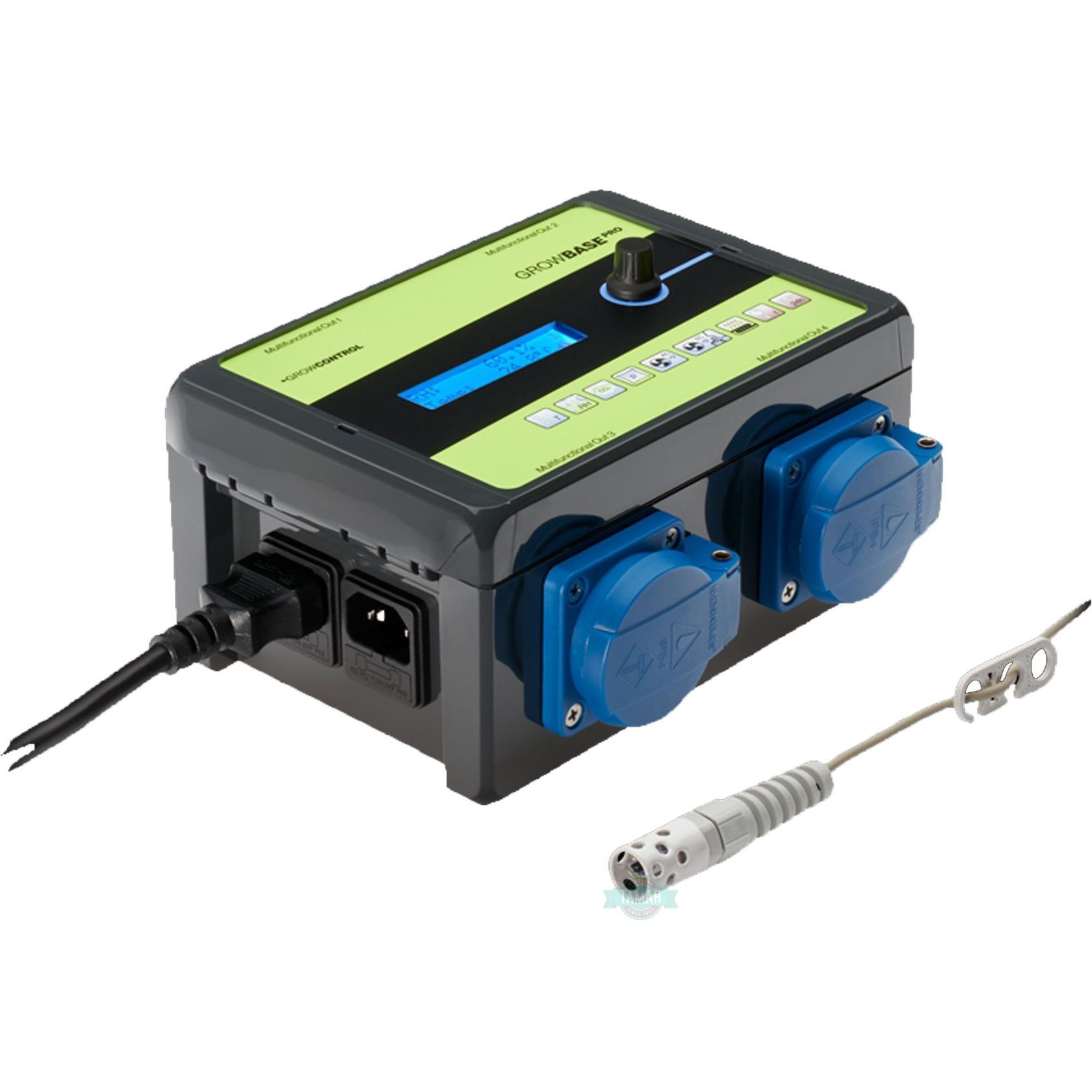

GROWBASE PRO is the control centre for the ambitious indoor gardener, as it always controls all climate factors precisely. Various devices and sensors can be connected.
The four sockets allow the operation of different devices as they can be set to a variety of functions.
GROWBASE PRO is equally suitable for controlling EC and AC fans. This guarantees maximum flexibility.
Extensive setting options via the easy-to-use menu and excellent coordination of the control algorithms ensure ideal conditions for your plants.

Key features:

• Temperature

• Humidity control

• CO2 control

• Vacuum control

• Dimming of compatible luminaires incl. sunrise and sunset (0-10V/1-10V)

• Inrush current limitation and 2-pole shutdown for the fourth socket: (2300W)

• Various timers: time of day timer, interval timer, event timer

• Multi-sensor: Multiple sensors of the same type

• USB interface for updates and beautiful future features

• DC output (MOSFET) for relays/contactors

• Dimensions (LxWxH) without connected cables

190mm x 170mm x 120mm

• Cable length sensor for temperature(T)/humidity (RH):

approx. 5m

• Length of power cords:

approx. 2m

• Power Supply 1 (For the device and Multifunctional Out 1-3):

100-240V~ 7A 50-60Hz

• Power supply 2 (for "Multifunctional Out 4"):

100-240V~ 10A 50-60Hz

• Output power "Multifunctional Out 1, 2, 3":

1200VA(W)@230V 620VA(W)@120V 5.2A

• Output power "Multifunctional Out 1+2+3":

1600VA(W)@230V 840VA(W)@120V 7A

• Output power "Multifunctional Out 4":

2300VA(W)@230V 1200VA(W)@120V 10A

• Output Multifunctional Out 5:

12-24V DC 1A max.

• Output current 0-10V outputs max.:

20mA

• Degree of protection:

IP42/Protective Insulated

• Repetition accuracy sensor T/RH:

±0.1%RH/±0.2°C

• Absolute Sensor Accuracy T/RH:

±2%RH/±0.2°C

• Adjustable range for temperature:

10-50°C

• Permissible ambient temperature:

10-40°C
